One, use range

The machine is a key equipment for pollution-free treatment project - press, processing raw materials: high temperature cooking animal fur, oil residue, etc. can be squeezed.

Second, the performance characteristics

1. Perfect structure, easy management, durable

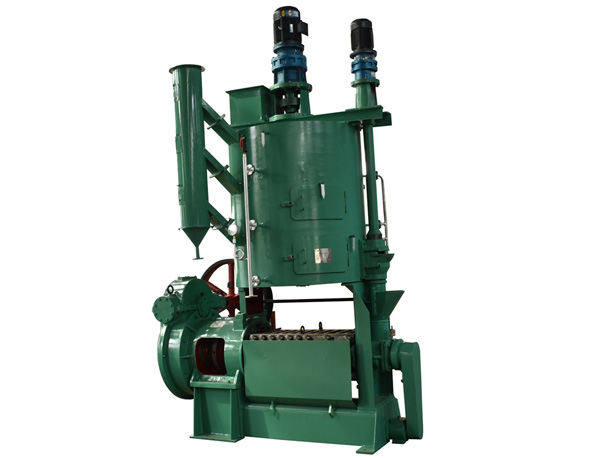

The machine is compact, the output is bigger, while the body occupies little; durable, the use of control is very convenient. Feeding situation, the oil process, slag cake thickness can be directly observed. If you want to adjust, just pull the handle and a special school wrench can be. Reducer gears are immersed in the oil running, the gear tooth surface are subjected to hardening heat treatment, and the press spindle is made of high quality alloy steel, so it can ensure long-term use. Squeeze part of the squeeze screw and squeeze has also been carburizing treatment, so long-term under high temperature friction wear and tear, can use more than three months.

2. Self - contained temperature, moisture regulator

In order to obtain a higher oil efficiency and make the slag cake in the lowest oil content, the machine attached to the embryo embryo adjustment equipment, can be adjusted into the embryo embryo adjustment to the best press temperature and moisture.

3. Automatic continuous work

The pressing process of the material embryo can be referred to the drawing (1).

(7) inlet to (2), (3), (4) modifier, after mixing and tempering by scraper (5) Squeeze the cage. (8) out of the oil cage and then into the oil storage tank, and slag cake in the machine after the discharge, so the entire press process from the material into the material quenched and tempered into the oil The oil out of the cake all the automatic continuous work, so in addition to driving the material embryo how much the temperature level, the degree of water content, the cake thickness adjustment is good, after only pay attention to cutting the pointer, steam pressure gauge pressure, ammeter, Adjustment, the press can be long-term automatic continuous work, so the management is simple, labor savings.

Third, the main specification data

1. Production capacity: (sludge treatment capacity) 8000--10000 Kg / 24 hours

2. Machine installed power: 18.5 Kw

3. Dimension: (L * W * H) 2.90 * 1.85 * 3.24 (m * m * m)

4. Net weight: 5000 Kw

5. Dry cake residue rate: 6 - 8%

Description: The above production capacity, dry cake residue rate data in accordance with the general treatment plant, equipped with a relatively complete material embryo processing equipment, and material embryo through the necessary drying process. Due to the different embryo oil content and operating conditions of the differences and other reasons, the above data will increase or decrease.
