GENERAL DESCRIPTION

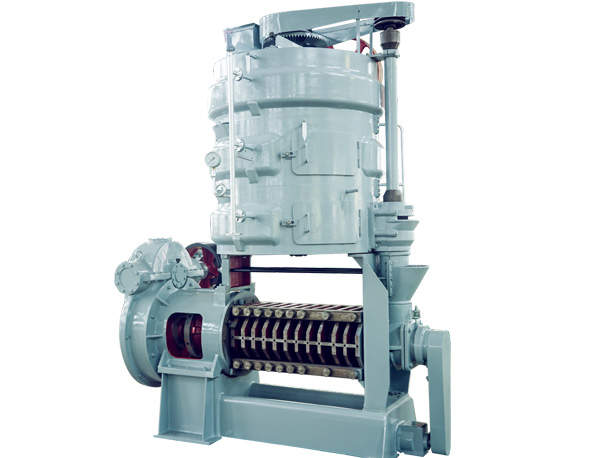

   The 202 pre-press is a continuous screw press that is suitable for pre-pressing or leaching of vegetable oil plants to handle a wide range of oilseeds such as peanuts, cottonseed, rapeseed and oil kaemi .

FEATURES

    The 202 pre-press has a process characteristics suitable for pre-pressing, which has the following characteristics:

    1, the processing capacity is large, the workshop area, power consumption, operation, management and maintenance work corresponding reduction.

    2, squeeze the structure of the cake loose and not pure, is conducive to solvent penetration.

    3, squeezed cake oil content and moisture suitable for solvent leaching.

    4, squeeze the quality of oil than a squeeze or a leaching of oil quality is good.

TECHNICAL DATA

    1, the amount of treatment: 45 ~ 50T / 24H (with rapeseed or oil Kwai Ren as an example)

    2, dry cake residue rate: about 13% (under normal pretreatment conditions)

    3, the motor: Y225M-6,1000 r / min, 30 kilowatts, 220 / 380V, 50Hz

    4, net weight: about 5500 kg

    5, Dimensions: 2.90 × 1.85 × 3.64 meters
